LED Light Sources

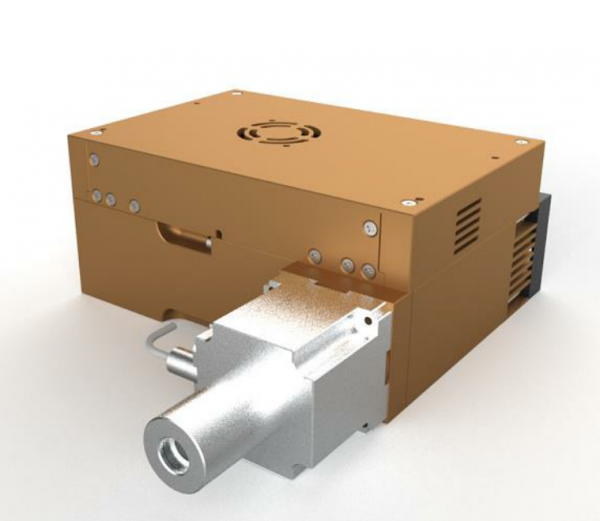

RFFM 1723C 모델은 최신 세대의 LED 및 LD 기술이 적용되어
모든 종류의 의료용 내시경에 고품질 광원을 제공합니다.
APPLICATION FEATURES
• ICG-NIR 형광이미징 및 내시경용 백색광 조명
• EMC 준수
• RS232/PWM/선형 제어
• 우수한 방열성을 갖춘 소형사이즈
• 안정적인 성능
본문
KEY PARAMETERS
|
Optical data |
Typical Value |
Remarks |
|

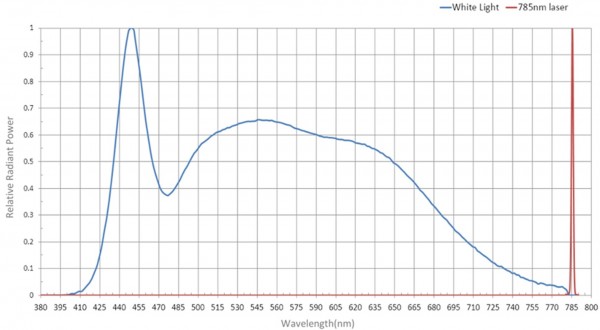

Light source |
White LED + 785 nm laser |
|
|
Peak wave length of laser |
785 nm |
FWHM=3 nm |
|
CCT of white light |
5500±500K |
White LED after 1m, NA0.62,Φ5mm optical fiber |
|
CRI of whith light |
≥90 |
White LED after 1m, NA0.62,Φ5mm optical fiber |
|
Output luminous flux of white light |
2400 lm |
After module,spot size at focal plane 4.5x5.5mm |
|
2100 lm |
With Rayfine adaptor,flux input for NA=0.62,Φ5mm optical fiber |
|
|
Output power of 785 nm |
4200mW |
After module,flux input for NA=0.62,Φ5mm optical fiber |
|
3900mW |
With Rayfine adaptor,flux input for NA=0.62,Φ5mm optical fiber |
|
|
Back focal length |
23.6 mm |
From the last lens vertex |
|
Electrical data |
||
|
Input voltage |
DC 12V |
Can be customized according to customer requirement |
|
Power consumption |
130 W |
Driver board consumption included |
|
Initial power |
156 W |
Minimum power output |
|
Dimming mode |
RS232 |
5%~100% |

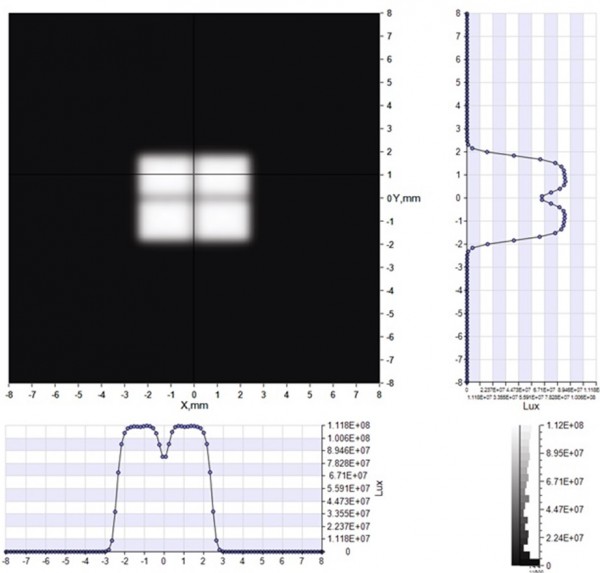

Illuminance distribution on the focal plane
