Micro Optics

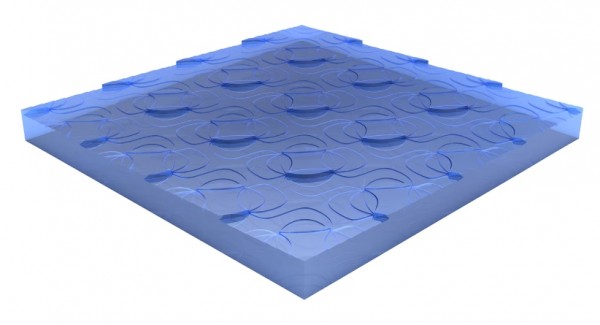

Diffractive Optical Elements (DOE)
* Binary and multi-level DOEs
* Phase and amplitude DOEs
* Transmissive and reflective DOEs
* Controlled zeroth order
본문
MATERIAL
* Fused silica; Others on request; Silicon
SURFACE ROUGHNESS
* Typ. < 2 nm RMS, max. 5 nm RMS
SURFACE FINISH/DEFECTS
* Custom based on ISO 10110
ANTI-REFLECTION COATING
* Against air or adhesive; Narrow or broadband; Others on request
PACKAGE FORM
* Bluetape; Gelpak; Known good die; UV Tape
NUMBER OF LEVELS
* 2 - 16
ADDITIONAL DESCRIPTION
* Alignment and mechanical structures; glue-stop; metallization; front- and/or backside
첨부파일
-
General Catalogue MOS.pdf (660.5K)
0회 다운로드 | DATE : 2024-10-16 12:40:37 -
Micro-Optics Flyer.pdf (854.0K)
0회 다운로드 | DATE : 2024-10-16 12:40:37 -
DOE Theory.pdf (117.7K)
0회 다운로드 | DATE : 2024-10-16 12:40:37 -
DOE_8x8_532nm_v0.1.pdf (547.4K)
0회 다운로드 | DATE : 2024-10-16 12:40:37 -
DOE_9x9_755nm_v0.1.pdf (547.7K)
0회 다운로드 | DATE : 2024-10-16 12:40:37 -
DOE_BS_9x9_0.5_1064nm_noAR_V1.1.pdf (230.9K)
0회 다운로드 | DATE : 2024-10-16 12:40:37
